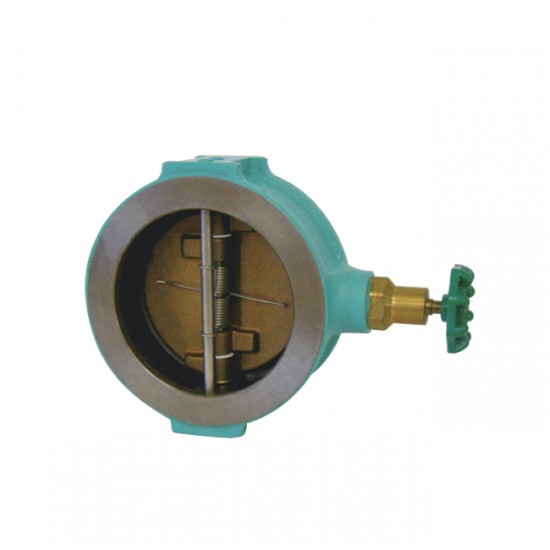

Yamato F10WC Cast Iron Dual Plate Wafer Check Valve
New
Yamato F10WC Cast Iron Dual Plate Wafer Check Valve
$0.00
- Model: F10WC
Water Hammer Absoption Type
with By-pass
Wafer connection to JIS 10K Flange
Water Non-shock 100℃ 1.4MPa, Water and Air 100℃ 1.0MPa
| Parts | Material |
| Body | Cast Iron |
| Plate | Bronze |
| Spring | Stainless(SUS304-WPB) |
| Bonnet | Brass |
| Stem | Brass |
| Seat | EPDM |
*This valve is not designed to handle toxic gas or flammable gas.
| inch | 2 | 2¹⁄₂ | 3 | 4 | 5 | 6 | 8 | 10 | 12 |
| mm | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 |
| L | 54 | 56 | 60 | 66 | 70 | 76 | 95 | 108 | 144 |
| H | 133 | 147 | 154 | 167 | 180 | 204 | 231 | 263 | 289 |
| D | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
