Yamato F10YE Cast Iron Y-Type Straner
New
Yamato F10YE Cast Iron Y-Type Straner
$0.00
- Model: F10YE
Bolted Cap
Flanged ends to JIS B2239
Stainless steel Screen
W.O.G 120℃ 1.0MPa, Saturated steam 0.7MPa, Water Non-shock 120℃ 1.4MPa
| Parts | Material |
| Body | Cast Iron |
| Cap | Cast Iron |
| Screen | Stainless(SUS304CP) |
| Gasket | Non-Asbestos |
*This valve is not designed to handle toxic gas or flammable gas.

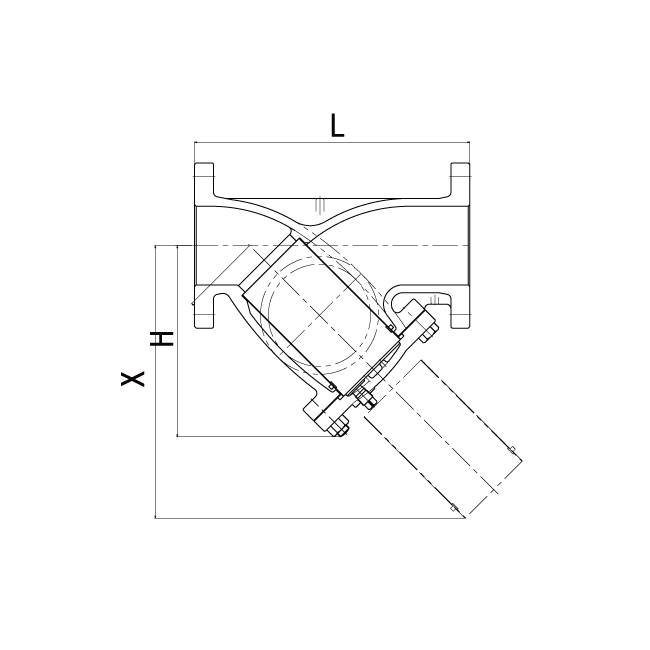

| inch | 2 | 2¹⁄₂ | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 |
| mm | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 |
| L | 250 | 280 | 320 | 350 | 410 | 470 | 580 | 690 | 800 | 960 | 1050 |
| H | 150 | 187 | 219 | 244 | 292 | 343 | 447 | 536 | 601 | 704 | 779 |
| D | 214 | 270 | 322 | 347 | 423 | 506 | 609 | 720 | 831 | 1022 | 1106 |
